Extend color gamut Digital Proofing Press DM13 12

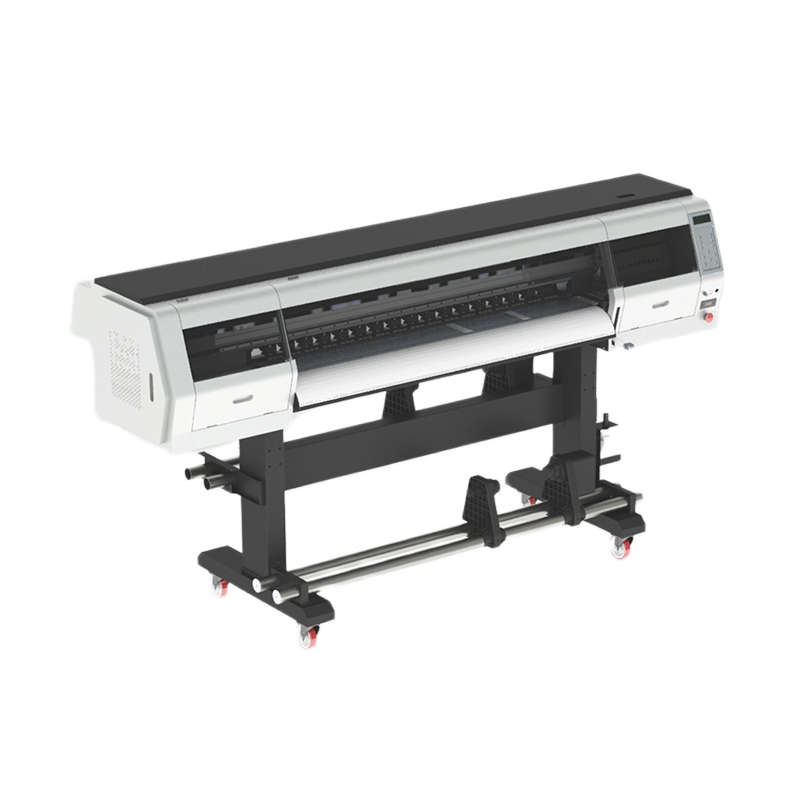

Extend color gamut Digital Proofing Press DM13 12.1

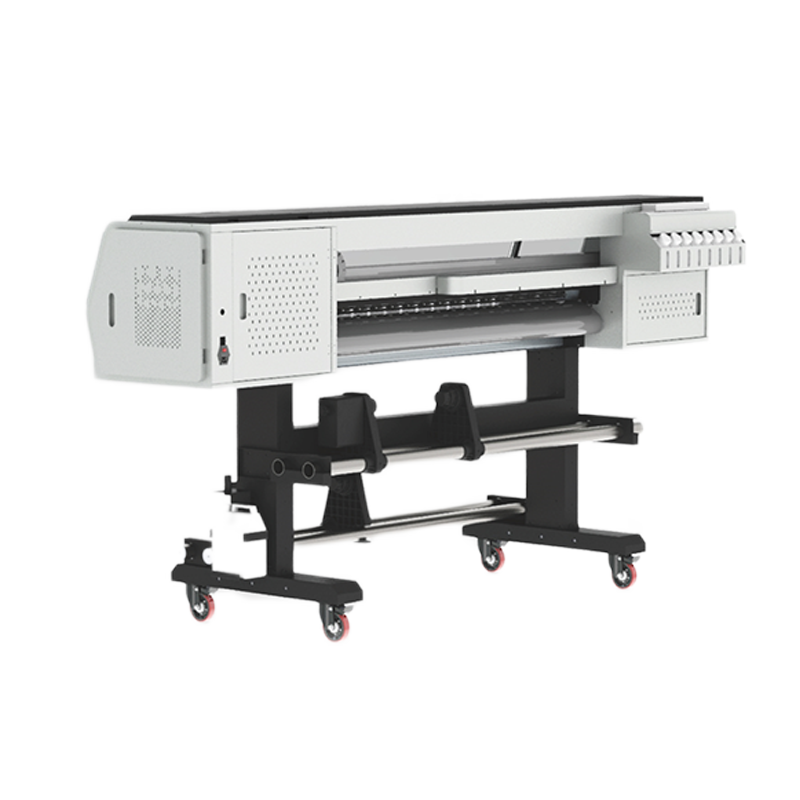

Extend color gamut Digital Proofing Press DM13 12.2

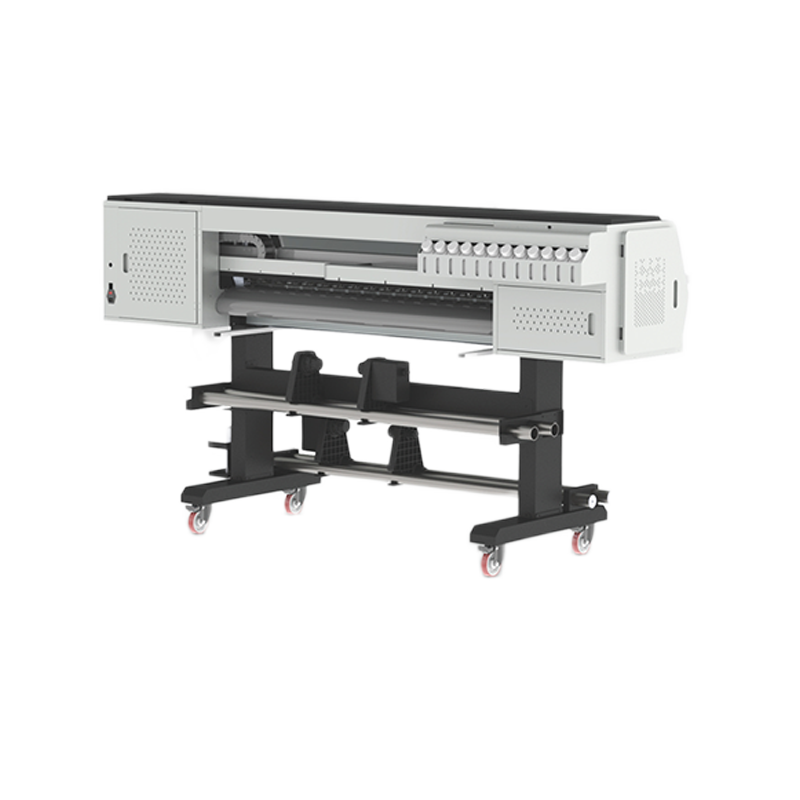

Extend color gamut Digital Proofing Press DM13 12.3

Extend color gamut Digital Proofing Press DM13 12

The DM1800 series digital printing system offers customers a cost-effective, feature-richand highly reliable solution for printing on coated paper, gray cardboard, offset paper.kraft paper, and more. Equipped with KYOCERA industrial-grade piezoelectric printheads, the system leverages precise droplet control and high-frequencyjetting technology to deliver fast, accurate print output.
Paired with JoinMars' proprietary KYOCERA-optimized aqueous pigment inks, theJM1800 significantly enhances both productivity and print quality-reducing operationalcosts while ensuring efficient, stable, and high-performance production.

Model                                                 DM1312
Printhead Configuration 3x Epson i3200 Printheads
Colors C/M/Y/K/LC/LM/LK/LLK/O/G/V/R
Ink Type Joinmars Water-based digital printing ink
Color Mode 12 Color
Ink Cartridge Capacity 1L/Color
Supported Media Coated Paper/Grey Board/Folding Box Board/Offset Paper/Book Paper/Kraft Paper..etc
Maximum Print Width 1300mm
Data Transmission Interface 1000Mbps-RJ45
Machine Weight 150KG
Power Requirements Main Unit Voltage AC220V |10A(2KW) |50Hz/60Hz
Operating Environment Ambient
Temperature Range		 20-28℃(68~77F)
Ambient Humidity
Range		 40~60%RH,No Condensation
Installation Dimensions Main Unit Net
Dimensions		 2550mm*750mm*1500mm(L*W*H)
140x140

Authoritative Standards,Precision BenchmarkingEquipped with 12-color Junma digital printing inks,this system perfectly covers lSO printing colorstandards and achieves over 90% Pantone colorgamut coverage

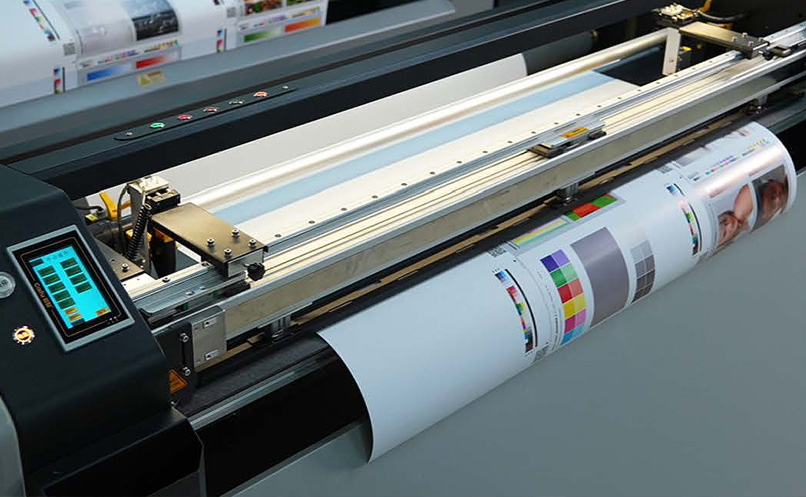

Perfect mastery of specialty papers and cardstocks：

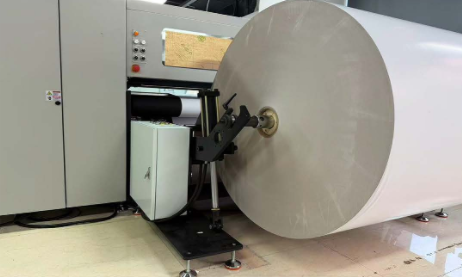

1.5-ton giant paper supply: Minimizes roll-change downtime tothe extreme, pushing Overall Equipment Effectiveness(OEE)beyond 95%.
More convenient paper loading: Ensures both safety and highefficiency.

140x140



140x140

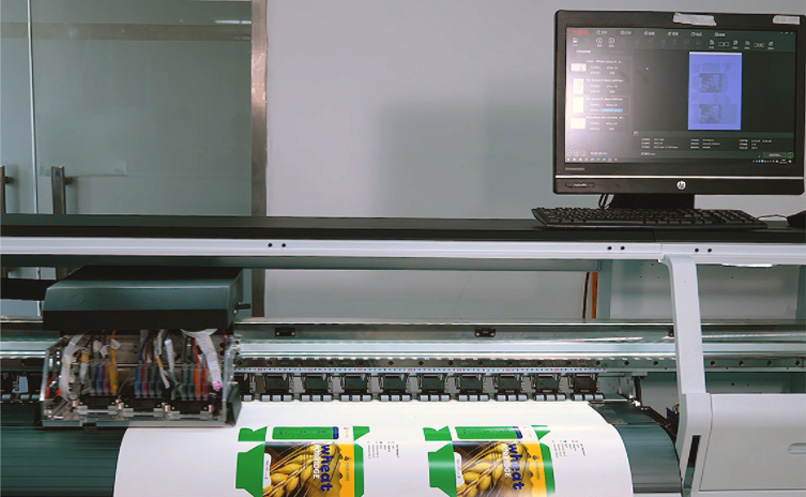

Rapid Response, Cost Reduction & Efficiency Boost: Eliminatethe dependency on traditional plate-making and proofing withinstant digital output, significantly shortening the deal-closingcycle.Whether for packaging, catalog publishing, or commer-cial promotional materials, we deliver precise proofs rapidly,minimizing communication overhead and material waste.



Flexible Smart Manufacturing

Roll-to-Roll: Equipped with high-precision tension controlto ensure neat and compact winding, allowing for directintegration with subsequent die-cutting or laminatingprocesses.
Roll-to-Sheet: Features inline cutting that instantly con-verts rolls into individual sheets immediately after print-ing.This eliminates the need for secondary handling, significantly shortening delivery cycles and reducing laborcosts.

140x140



140x140

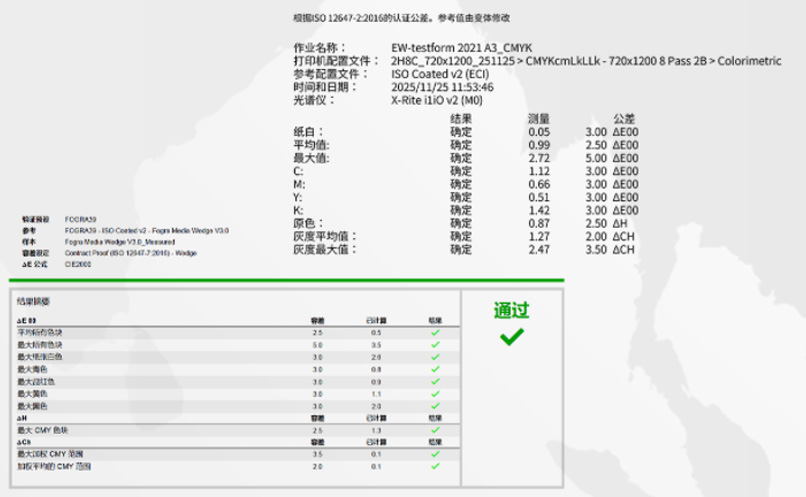

Stable Output, Authoritative Certification: With stable equip.ment operation and exceptional color consistency across batch-es, our system supports the generation of standard color re-ports. This provides authoritative data backing for deal approvals-giving clients the confidence to sign off and ensuring pro-duction is strictly data-driven.
